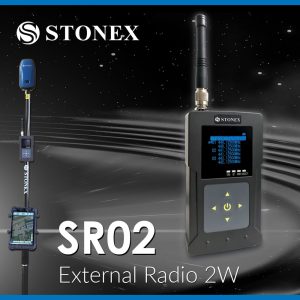

Stonex SR02
4,092.75 ₾
RADIO MODEM 2W POWER
SR02 is a high power radio modem for transmitting RTK corrections from a GNSS receiver. The transmission power can be selectable by the user from 0.5W to 2W reaching distances up to 10km. The radio has numerous settings that can define communication protocols, channel width and transmission frequency, thus full compatibility with other external radio modems or integrated in a GNSS receiver.
Additional information
| Brands | |
|---|---|
| Condition | |
| Seller | |
| Industries | Construction, Automated management systems, Cadastre, Geodesy, Maining, Monitoring, Oil & Gas |
Delivery Service
Megageohub delivers products purchased up to 500 (five hundred) GEL within the city of Tbilisi by the postal service selected by it for 10 GEL, within 2 working days of purchase, and in the region for 20 GEL, within 5 working days of purchase. Delivery of items above 500 (five hundred) GEL is free.
Item Ordering Conditions
You can order this item from us, send us your contact details and we will contact you within 48 hours.
Product delivery time is 15-30 days.
To order the product, send us your contact details
- Description
- Additional information
Description
FULL OPERATING MODE
SR02 is used to transmit RTK corrections from a base station, but can also be used as a radio receiver. In addition, the retransmission function can be activated and the radio placed between a base and a rover increasing the coverage area of the RTK correction. The connection of the SR02 radio with a GNSS receiver is done via the serial port or via Bluetooth. Through Bluetooth mode the SR02 radio can transform the receiver into a RTK rover receiver (network only) to work in the base/rover configuration. The Stonex S70G, S580 and S700A GNSS receivers can be connected to the SR02 radio via Bluetooth without the use of external cables.
SOFTWARE FOR SIMPLE MANAGEMENT
For the configuration of the radio it is possible to use the PC software which allows a fast and complete management of the SR02. Through the integrated display it is possible to modify the configuration of the radio in a simple and fast way directly in the field.
| ძირითადი | SR02 |
| სიხშირე | 430-470Mhz |
| სამუშაო რეჟიმი | მიმღებ-გდამცემი |
| არხები | |
| სიმძლავრე | |
| გადაცემის გამომავალი სიმძლავრე | 2 ვატი-5 ვატი |
| ბატარეა | 6800 mAH |
| შიდა მოდემი | |
| Bluetooth | 2.0/2.1 |
| სერიული ინტერფეისის მონაცემთა სიჩქარე | |
| არხის სიგანე | 12.5KHz-25KHz |
| მოდულაცია | GMSK/4FSK |
| პროტოკოლები | Trimmmark3,Trimtalk,Satel |
| ფიზიკური სპეციფიკაცია | |
| ზომები | 150x83x31 მმ |
| წონა | 560გრ |
| ოპერაციული ტემპერატურა | -30 გრადუსი+65 გრადუსი |
| IP | 67 |
