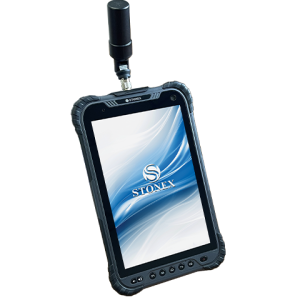

Stonex S80G
9,622.58 ₾
The S80G is a GNSS system that offers a range of features and capabilities for efficient data and photo collection in the field. It is a multi-constellation system, meaning it can utilize signals from multiple satellite networks, including GPS, GLONASS, Galileo, and BeiDou. Furthermore, the S80G is a triple-frequency GNSS system, which means it can receive and process signals from L1, L2, and L3/L5 frequency bands.
Additional information
| Brands | |
|---|---|
| Condition | |
| Seller | |
| Industries | Construction, Cadastre, Communication, Geodesy, GIS & Mapping, Maining, Oil & Gas, Remote Sensing |
Delivery Service
Megageohub delivers products purchased up to 500 (five hundred) GEL within the city of Tbilisi by the postal service selected by it for 10 GEL, within 2 working days of purchase, and in the region for 20 GEL, within 5 working days of purchase. Delivery of items above 500 (five hundred) GEL is free.
Item Ordering Conditions
You can order this item from us, send us your contact details and we will contact you within 48 hours.
Product delivery time is 15-30 days.
To order the product, send us your contact details
- Description
- Additional information
Description
This triple-frequency capability enhances the system’s precision and robustness, particularly in areas with potential signal interference or obstructions. The GNSS board of the S80G is equipped with 1408 channels, allowing it to track multiple satellites simultaneously. The S80G offers RTK (Real-Time Kinematic) and raw data recording capabilities, enabling users to capture high-resolution data and imagery.

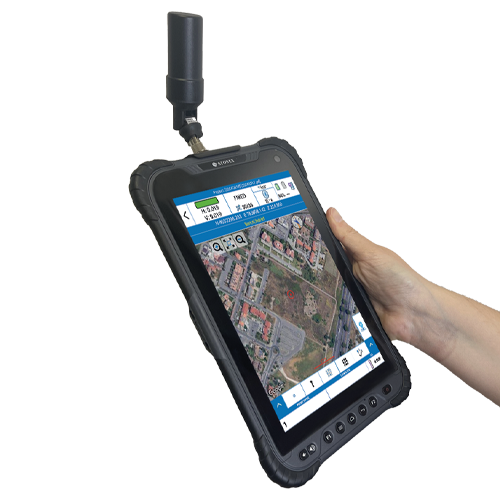

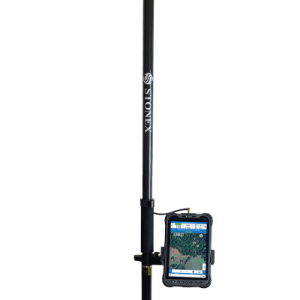

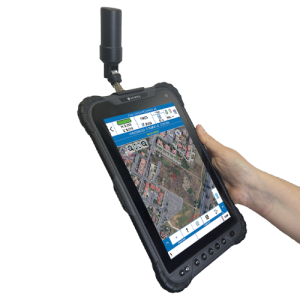

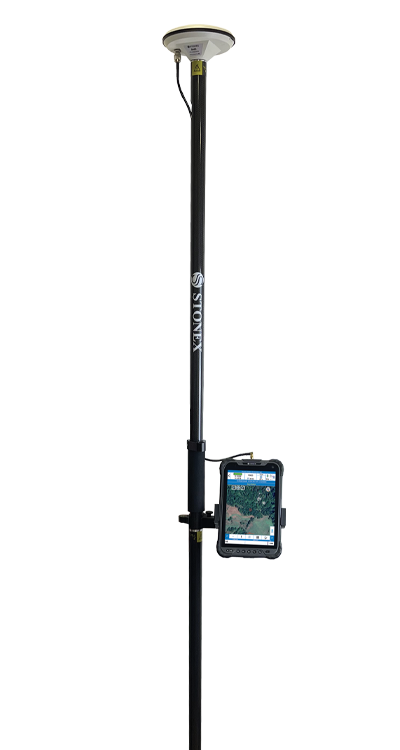

The S80G system comes with an antenna that is directly connected to the tablet, providing an RTK precision of 2 cm. However, the system also supports the use of an external antenna SA85, which can further enhance the precision of the collected data, allowing users to achieve even greater accuracy in their field work, approximately < 1 cm. The S80G can operate in real-time mode, utilizing RTK corrections transmitted by a network of GNSS Permanent Stations.
The S80G, through the SR02 external radio, can also work in RTK by receiving corrections from a GNSS base receiver via the UHF radio. Additionally, the S80G can record raw data received from satellites, allowing for post-processing in the office.
| Receiver | |
| Satellite signals tracked | GPS, GLONASS, GALILEO, BEIDOU, QZSS, IRNSS, SBAS |
| Channels | 1408 |
| Internal Memory | – |
| TilT Sensor | – |
| Postioning | |
| Static Surveying | |
| Horizontal | 1 სმ. |
| Vertical | 1 სმ. |
| Real Time Kinematic | |
| Horizontal | 2 სმ. |
| Vertical | 2 სმ. |
| Laser survey | – |
| System | |
| Processor | Qualcomm QCM4290,Octa core 2.0 GHz |
| Operaiting System | Android 13.0 |
| Ram | 6 გბ |
| Flash | 128 გბ |
| FT Slot | მიკრო SD |
| Display | |
| Display size | 8.0″ HD |
| Resolution | 1280×800 პიქსელი |
| Brightness | 800 ნიტი |
| Camera | |
| Rear/Front | 16 MP-8MP |
| Comunication | |
| Internal Modem | – |
| Bluetooth | V2.1 + EDR / V5.1 |
| Wi-Fi | 2.4 GHz+5 GHz |
| Navigation outputs | NMEA 0183 |
| Power Supply | |
| Battery | შიდა დატენვის, 3.8 V – 8.200 mAh |
| Working Time | 8 საათამდე |
| Physical Specification | |
| Dimensions | 249მმ. x 146 მმ. x 28 მმ. |
| Weight | 0.7 კგ. |
| Operating Temperature | -20°C to 60°C |
| Waterproof/Dustproof | 67 |
